The Complete History of the Mineral Jig: From Ancient Ingenuity to Modern Gold Recovery
Introduction
Renowned for reliability, effectiveness, and environmental friendliness, mineral jigs are the epitome of gravimetric mineral processing. Though widely associated with the gold rushes of the 19th century, their roots trace back nearly 500 years and perhaps longer. This article offers a comprehensive examination of the mineral jig’s historical evolution—from the simple, yet ingenious gravity separation techniques employed by ancient civilizations, to the ultra-efficient and easily portable gravimetric separators used today.
Understanding Gravimetric Separation
Gravimetric separation is the combination of two physical processes that exploit basic differences in minerals, specific gravity (density) and metric size.

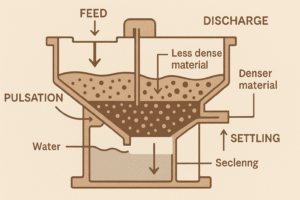

Separation by specific gravity occurs naturally during agitation or when particles are suspended in a fluid such as water. Denser materials will settle to the bottom faster than materials with a lower specific gravity. This stratification effect can be enhanced using vertical pulsations of water called jigging.
Separation by metric size is accomplished by using a classification screen or perforated plate. Many modern mining operations incorporate rough screening before gravity separation and multiple levels of fine screening after.
Gravimetric separation is particularly effective for recovering coarse and fine particles of free gold, where chemical or froth flotation techniques are less effective or not economically viable. Because gravimetric methods do not rely on reagents or chemical treatments, they are highly valued in environmentally sensitive or remote mining operations.
Ancient Roots: Early Gravity Separation
Sluicing – Long before the mineral jig was invented, ancient civilizations used flowing water and textured cloth or boards to extract valuable minerals. In Ancient Egypt, sluicing techniques were used along the Nile River to recover gold from alluvial deposits. In China, during the Han Dynasty (around 200 BCE), rudimentary washing tables and sluices were used to extract tin and gold.
Gold panning – Likely originating in the Middle East or the Indian subcontinent, gold panning uses water and motion to concentrate heavy particles.
These early forms of gravity separation, though simple, laid the intellectual foundation for what would eventually become the mineral jig. However, it wasn’t until the 18th and 19th centuries that jigs began to emerge in a recognizable form.
1550: The First Documented Jig in De Re Metallica
The earliest documented description of a mineral jig appears in De Re Metallica, written in 1550 by Georgius Agricola, a German scholar often called the “father of mineralogy.”
In this seminal work on mining and metallurgy, Agricola describes a perforated basket jig, used by miners in central Europe.
This primitive jig featured a basket or sieve held in a trough of water. Miners would shake the basket manually, allowing heavier particles to settle to the bottom while lighter waste was washed away. The perforated basket acted much like the jig beds we use today—creating a stratified layer that sorted material by density.
Agricola’s illustrations and descriptions are widely recognized as the first recorded mention of a jigging device, making it clear that the roots of jig technology extend back nearly half a millennium.
18th–19th Century: From Manual to Mechanical—The Evolution of Jigging
By the 18th century, gravity separation methods had matured significantly across Europe’s mining regions. In places like Germany’s Erzgebirge and England’s tin-rich Cornwall, miners relied on hand-operated jigs and gravity tables to separate heavy minerals from waste rock.
These early devices, often made of wood with mesh screens or perforated trays, were manually agitated to allow denser particles to settle through the water.
While effective for small-scale operations, these systems required significant labor and struggled with fine mineral recovery.
The Gold Rush and Mechanized Jigging
As mining activity expanded into the Americas during the 19th century, new challenges emerged—especially with the onset of the Gold Rushes. In California (1848–1855) and Australia (1851–1870s), prospectors quickly discovered that traditional techniques like panning and sluicing were inefficient for recovering fine gold. This sparked renewed interest in gravimetric separation, particularly in the jigging principle first documented by Georgius Agricola centuries earlier. Inventors and tinkerers began experimenting with mechanical alternatives that could increase recovery rates and handle higher throughput.
Patent Milestone
A pivotal moment arrived in 1884 when the United States issued a patent for a jigging machine tailored to gold processing. This patent symbolized the transition from artisanal, labor-intensive techniques to scalable, industrial solutions. These early commercial jigs not only improved recovery rates but also laid the groundwork for modern mineral processing technology.
Early 20th Century: The Jig Becomes Industrialized

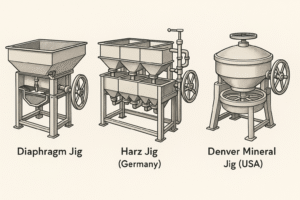

The early 1900s marked another turning point. Jigs became standard in coal and metal ore processing plants. Key innovations during this era included:
The Diaphragm Jig
This design used a flexible rubber diaphragm powered by a crank or cam to create pulsed water flow. It greatly improved separation consistency and could handle a wider range of particle sizes.
The Harz Jig (Germany)
Widely adopted in Europe, especially in lead and zinc mining, the Harz jig used side-pulsing action and featured multiple chambers.
It improved separation accuracy and allowed higher throughput.
The Denver Mineral Jig (USA)
Developed in the U.S., the Denver jig became a workhorse in base metal and gold operations. It used a circular hutch design and more refined water distribution, and it could be scaled for both lab and production use.
With industrial-scale mining on the rise, these jigs were adopted globally—becoming essential for processing iron ore, manganese, tungsten, and many other heavy minerals.
Mid-20th Century: Modularization and Specialization
Between the 1940s and 1970s, jig systems became more modular and customizable. Adjustable stroke lengths and water flow settings enabled miners to tailor systems to specific
ore characteristics. The use of more durable screen materials (steel, rubber, polyurethane) increased equipment lifespan.
This period also saw expanded use in non-traditional sectors, such as diamond and rare earth mineral recovery.
Late 20th Century: Accessibility and Environmental Focus
The 1980s and 90s brought another critical shift: Adoption by Artisanal and Small-Scale Miners (ASM) Growing concerns over mercury and cyanide use in impoverished and remote areas indicated a need for equipment that didn’t require chemicals. Specifically, ASM miners in Africa, Asia, and South America were identified as needing portable, eco-friendly mining tools.
21st Century: Precision, Portability, and Performance
Today’s mineral jigs are smarter, lighter, and more efficient than ever before. Major advancements include:
Digital controls and sensors that adjust pulse rate, water flow, and bed stratification in real-time.
Portable designs like the Riverdance Mini Jig, the world’s first truly portable single stage and multi-stage mineral jigs, optimized for transport, lab and field use, and capable of operating in rugged conditions.
Full-system integration, with trommels, classifiers, and concentrators working in sync for efficient end-to-end processing.
Minimal power requirements, allowing for use in off-grid environments with battery, solar, or generator setups.
Modern jigs can be used by solo prospectors, remote exploration teams, or large- scale operators—without sacrificing recovery efficiency.
Conclusion
From Georgius Agricola’s perforated basket in 1550 to today’s smart, field-ready systems, the mineral jig exemplifies a timeless yet evolving technology.
Grounded in a simple physical principle and refined through centuries of innovation, it remains a mainstay of both large-scale industrial mining and small-scale prospecting.
The jig’s enduring utility lies in its adaptability. It can recover a wide range of minerals, perform in extreme environments, and operate sustainably without chemicals.
As the mining sector advances into an era of ecological responsibility and technological sophistication, the mineral jig stands not as a relic of the past, but as a tool for the future.
Want to see the future of jigging in action?
Check out the Riverdance Mini Jig—the world’s only fully portable mineral jig—at rgmak.com. Bring the legacy of centuries to your next gold recovery mission.
